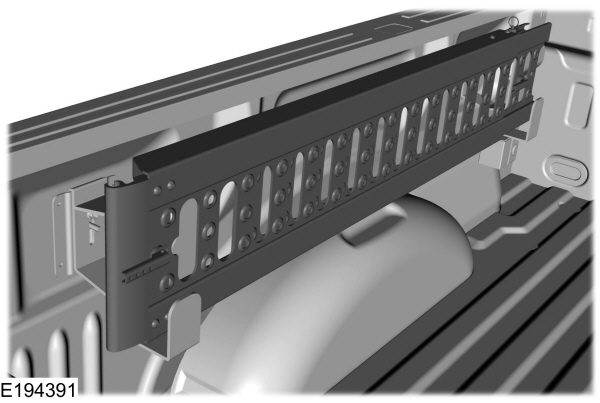

Bed Ramps
WARNING:
When sliding the ramp up or down, take care not to get your fingers or hands caught in the mechanism. Failure to follow this instruction could result in personal injury.
WARNING:
Make sure that you correctly install the ramp to the tailgate plate. Failure to follow this instruction could result in personal injury.
WARNING:
Do not step or sit on the ramp when it is in the stowed position. Failure to follow this instruction could result in personal injury.
WARNING:
Only install the ramp within the prescribed ramp angles. Failure to follow this instruction could result in personal injury. |
Note:
The ramp maximum capacity is
363 kg.
Note:
Verify the ramp is on stable ground before usage.
Note:
For loading and unloading equipment, your ramp should be set between 10 degrees upward and 26 degrees downward to avoid damage to the ramp claw and tailgate plate.
Note:
When using your vehicle for off-road operation, remove the bed ramps from the vehicle and store them in a safe location away from your vehicle.
Using the Bed Ramp
- Remove the front and rear cables.
- Open the cam lever arms and unscrew the cam bolts.
- Remove the ramp from the ramp holder.

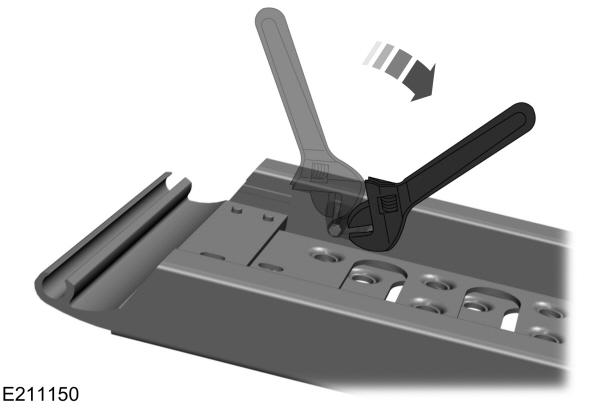

- Rotate the stops at the underside of the ramp to the open position.
Note:
You can use a smooth surface tool to rotate the stops.

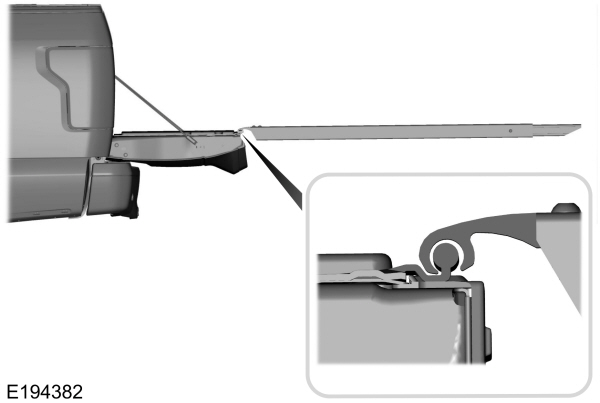

- Slide the ramp claw onto the tailgate plate.
- Pull the location pin outward and extend the ramp until the pin is seated in the usage position, then set the ramp on even ground.
Stowing the Bed Ramp
- Pick up the ramp. Pull the location pin outward.
- Slide the ramp into the storage position until the location pin locks.
Note:
Make sure the proper pin location has been applied for your bed size.
- Slide the ramp claw off of the tailgate plate.
- Rotate the stops at the underside of the ramp to the closed position.
- Place the ramp into the ramp holder.
- Install the cam bolts and close the cam lever arms.
- Attach the front and rear cables.
Note:
Make sure you properly secure the locking cable. If the locking cable is unsecured, you may hear a rattling noise.

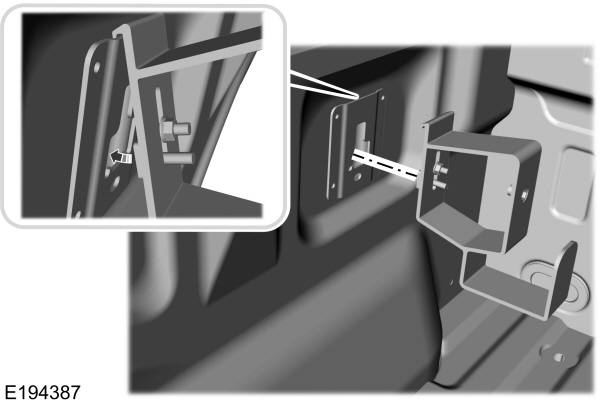

Installing the Ramp Holder
- Hook the top of the ramp holder over the mounting plate and rotate the ramp holder into position.
- Slide the ramp holder studs upwards into the installed position.
- Tighten the ramp holder nut.
Note:
The nut should be on the upper stud.
