Gauges
Type 1 and 2

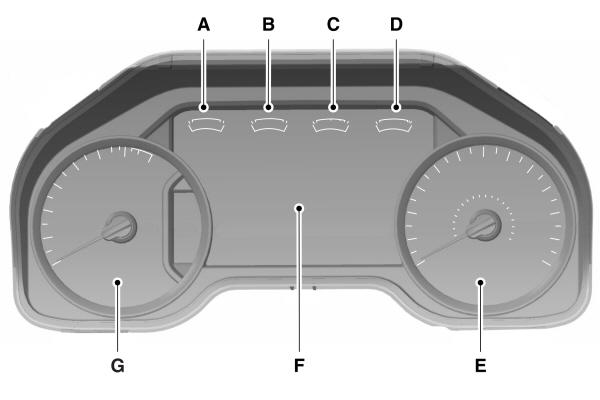

| AEngine oil pressure gauge BEngine coolant temperature gauge CFuel gauge DTransmission fluid temperature gauge ESpeedometer FInformation display See General Information. GTachometer |
Type 3

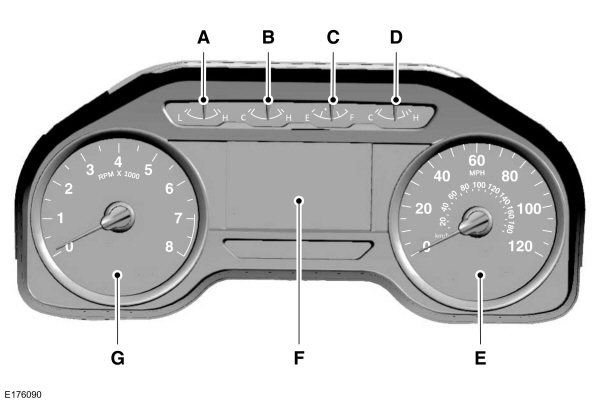

| AEngine oil pressure gauge BEngine coolant temperature gauge CFuel gauge DTransmission fluid temperature or Turbo boost (Ecoboost engine only) gauge ESpeedometer FInformation display See General Information. GTachometer |
Engine Oil Pressure Gauge
Indicates engine oil pressure. The needle should stay in the normal operating range (between L and H). If the needle falls below the normal range, stop your vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked by an authorized dealer.
Engine Coolant Temperature Gauge
WARNING:
Never remove the coolant reservoir cap when the engine is running or hot. |
Indicates engine coolant temperature. At normal operating temperature, the level indicator will be in the normal range. If the engine coolant temperature exceeds the normal range, stop your vehicle as soon as safely possible, switch off the engine and let the engine cool.
Fuel Gauge
Note:
The fuel gauge may vary slightly when your vehicle is moving or on a gradient.
Switch the ignition on.The fuel gauge will indicate approximately how much fuel is left in the fuel tank. The arrow adjacent to the fuel pump symbol indicates on which side of your vehicle the fuel filler door is located.
The needle should move toward F when you refuel your vehicle. If the needle points to E after adding fuel, this indicates your vehicle needs service soon.
After refueling some variability in needle position is normal:
- It may take a short time for the needle to reach F after leaving the gas station. This is normal and depends upon the slope of pavement at the gas station.
- The fuel amount dispensed into the tank is a little less or more than the gauge indicated. This is normal and depends upon the slope of pavement at the gas station.
- If the gas station nozzle shuts off before the tank is full, try a different gas pump nozzle.
Low Fuel Reminder
A low fuel level reminder displays and sounds when the distance to empty reaches
120 km to empty for MyKey, and at
80 km,
40 km,
20 km and
0 km for all vehicle keys.
Transmission Fluid Temperature Gauge
Indicates transmission fluid temperature. At normal operating temperature, the level indicator will be in the normal range. If the transmission fluid temperature exceeds the normal range, stop the vehicle as soon as safely possible and verify the airflow is not restricted such as snow or debris blocking airflow through the grill. Also, higher than normal operating temperature can be caused by special operation conditions (i.e. snowplowing, towing or off-road use). Refer to Special operating conditions in the scheduled maintenance information for instructions. Operating the transmission for extended periods with the gauge in the higher than normal area may cause internal transmission damage. You need to alter the severity of your driving conditions to lower the transmission temperature into the normal range. If the gauge continues to show high temperatures, see an authorized dealer.
Information Display
Odometer
Located in the bottom of the information display. Registers the accumulated distance your vehicle has traveled.
Compass
Displays the vehicle’s heading direction.
Trip Computer
See
General Information.
Vehicle Settings and Personalization
See
General Information.
